Project Description

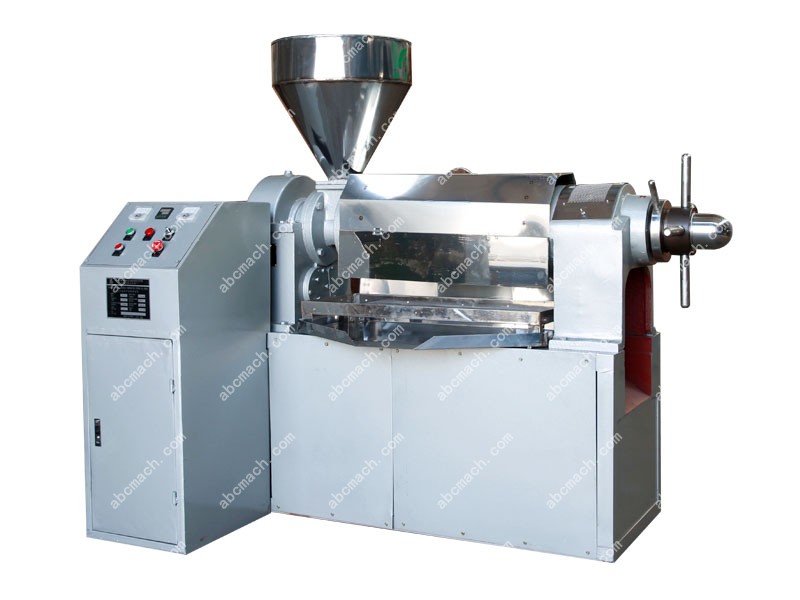

Auto-temperature controlled oil extraction machine is an advanced model of screw oil pressing machine. It not only has all the features of continuation oil screw presses, but also combines unique advantages:
- The screw shaft and main pressing cage is internally installed electric heating pipes which can pre-heat the oil-bearing materials at the same time. Which can absolutely save the pre-heating time.
- This type of extraction machine is equipped with electrical control cabinet, which can monitor the temperature inside pressing cage at any time, this mechanism can improve the reliability of heating and getting a higher oil yield.
- The working heat can be fully utilized not only for environmental protection, energy saving and health requirements, but also can largely improve the quality of oil.
- More convenient to clean for the oil tray and cover are both made of stainless steel.
Compared with traditional oil extraction machine, auto-temperature controlled extraction machine is more stable, energy efficient and environment friendly. The extraction machine covers less space because of the compacted body design. For small and medium scale oil milling factory and individual farmers or families, our high quality auto-temperature control oil extraction machine is your first choice!
Specifications of auto-temperature control oil extraction machine
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-130 | 450~500kg/h; 10~12Ton/hrs |
21.7kw | 1080kg | 2140*1140*1710mm |
| Power | Pressing Power | 18.5kw – 6P | ||
| Main Shaft Heating Power | 1.8kw – 220V | |||
| Pressing Cage Heating Power | 1.4kw – 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-128 | 300~375kg/h; 7~9Ton/hrs |
15kw | 830kg | 2000*1400*1950mm |
| Power | Pressing Power | 15kw – 6P | ||
| Main Shaft Heating Power | 1.8kw – 220V | |||
| Pressing Cage Heating Power | 1.4kw – 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-128-C | 300~375kg/h; 7~9Ton/hrs |
18.2kw | 830kg | 2000*600*1165mm |
| Power | Pressing Power | 15kw – 6P | ||
| Main Shaft Heating Power | 1.8kw – 220V | |||
| Pressing Cage Heating Power | 1.4kw – 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-125 | 210~300kg/h; 5~7Ton/hrs |
14.2kw | 770kg | 1900*1000*1610mm |
| Power | Pressing Power | 15kw – 4P | ||
| Main Shaft Heating Power | 1.8kw – 220V | |||
| Pressing Cage Heating Power | 1.4kw – 220V | |||
| Model | Capacity | Power | Weight | Outline Dimension |
|---|---|---|---|---|
| YZS-95 | 150~200kg/h; 3.5~5Ton/hrs |
13.6kw | 730kg | 1675*1000*1610mm |
| Power | Pressing Power | (7.5~11kw) – 6P | ||
| Main Shaft Heating Power | 1.8kw – 220V | |||
| Pressing Cage Heating Power | 0.8kw – 220V | |||
As a common type of vegetable oil extraction machine, screw oil press is made up of feeder, press cage, gear box, stand, and screw axis and automatic temperature control system. With more than 20 years of experience in oil pressing machine industry, our factory has devoted great efforts and innovation to make the products perfect for every customer’s different requirements. Auto-temperature controlled extraction machine is a stand-alone device, and it is adaptive to connected with other machines for building an edible oil production line. Furthermore, our auto-temperature controlled extraction machine is easier to make connection with other machines. So that there is no need for you to consider that if our stand-alone device can coordinate with your own device.
Superiorities of Auto-Temperature Controlled Oil Extraction Machine
- Designed by experienced engineers and the structure is reasonable and easier to control.
- Produced by big factory, and the quality is in the high level.
- It can effectively extract oil from various plant seeds and nuts, including soybeans, black seeds, rapeseed, flaxseed, walnuts, almond and more.
- Produces high-quality oil cake that can be the best animal feed material or used for fertilizer.
As the leading manufacturer of oil milling machines in China, AGICO can supply various standards of vegetable seeds oil extraction machines and edible oil refining equipments, and our oil pressing machines have been awarded with various quality authentications and certifications from home and abroad.
