Oilseed Expanders are particularly widely used in soybean oil pressing plants where they permitted considerable increase in plant capacity with only minimal renovation of existing process equipment. Except soya, oilseed expander is also suitable to process other oilseed materials like prepressed oilseed cakes. An expander can significantly increase the capacity of oil milling plant, or increase plant efficiency at the same capacity, or correct for persistent processing problems, such as crumbly prepress cake or poor quality flakes. Actually, a combination of all the three features are achieved under most situations. For a new solvent extraction plant, the use of oil seeds expanders can allow for the selection of a smaller size, and less expensive, extractor system.
Working Principle of Oilseed Expanders / Extruder

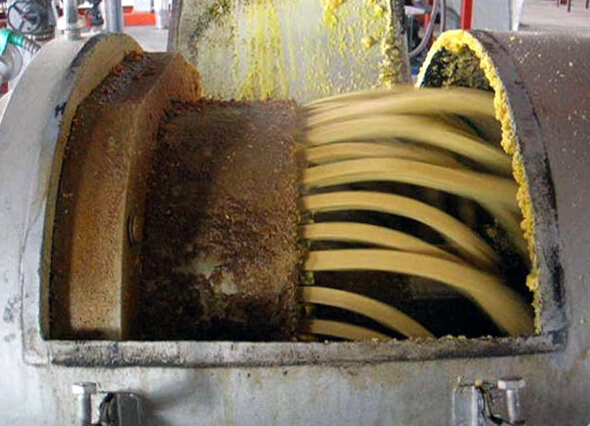

Under a series of mechanical actions including extruding, shearing, turbulent and kneading, as well as the hot and humid of s steam injection, the cell tissue of oilseed flakes is completely destroyed. The enzymes in the oilseeds are passivation. When exiting from the expander, oil materials of high temperature and high pressure will shift to atmospheric pressure instantly, moisture quickly released from the materials, the extrudate to puff or expand.

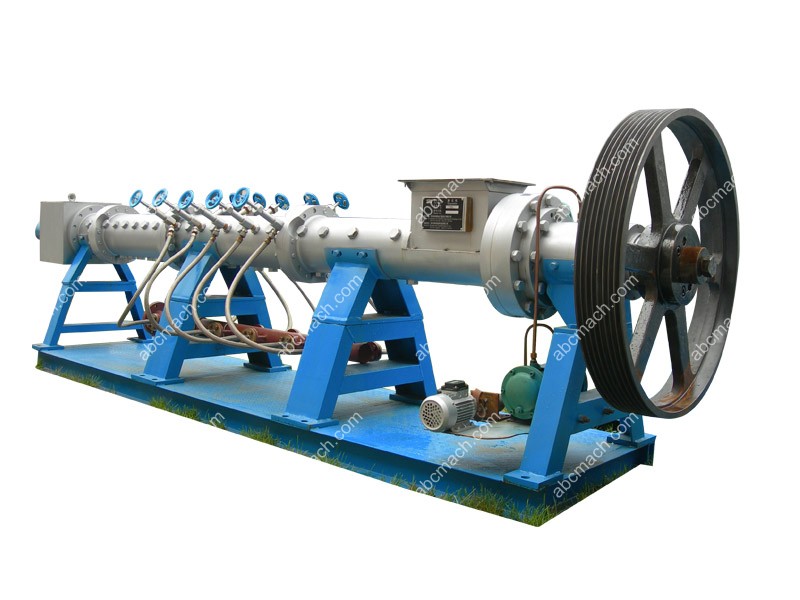

Oilseed Expander is made of a cylindrical barrel inside of which is a worm shaft with interrupted flighting. Protruding from the barrel wall are a number of stator pins which intermesh with the interruptions of the flighting and allow for high turbulent, kneading and shearing action on the oilseed flakes as it propelled through the barrel. Live steam is injected directly into the materials to elevate the temperature and moisture, and the temperature is further elevated by the friction of the flighting slipping against the material subjecting it to higher and higher pressure as it is moved down the length of the barrel. By the time the material reaches the discharge openings, it has been converted into an agglomerated, plastic-like mass that flows out under pressure through the discharge openings and puffs or expands as it exits each opening.
Main Technical Parameters of the Oil Seeds Expander / Extruder
|Raw Materials||Soybean, Rice Bran, Rapeseed|
|Thickness of Flaking||0.35～0.45mm|
|Moisture Content before Extruding||10～11%|
|Moisture Content after Extruding||12～13%|
Main Technical Parameters of the Soybean / Rice Bran Expander
|Speed of Mainshaft||290rpm||307rpm||278rpm||278rpm||278rpm|
|Power of Main Motor||250KW-6||200KW-6||160KW-6||75KW-6||35KW-6|
|Power of Hydraulic Power Unit||3KW-4||3KW-4||3KW-4||3KW-4|
Functions of Puffing Process Before Solvent Oil Extraction
- Increase the capacity of oil extractor. After extruding, the volume-weight is increased by 20%~30%, which greatly raises the capacity of extractor.
- Increases the efficiency of extraction plant, shorten the extraction time.
- Lower solvent content of wet meal, reducing the load of wet meal desolventizing.
- Higher concentration of miscella, reducing the load of evaporation.
- Improve the quality of crude oil after extraction.
- Increase the production of flaking equipment. The requirement of oil seed extruder is no high on flake thickness, which means the thickness of flaking is properly relaxed, therefore to increase the output of the flaking machine.
- Reduce the energy consumption in the solvent extraction.
How Much Do You Know about Oilseed Expander?
Oilseed expander is also known as extruder that cause the extrudate to puff or expand, as it exits from the extruder. Expanders are a low-cost, efficient means to improve the extractability of oil seed materials ahead of solvent extraction. Starting with their introduction in 1965 on the direct expansion of low-oil materials such as rice bran, they were later successfully applied on high-oil materials that had been partially defatted by means of screw press. For well over a decade now, expanders have been successfully used on a wide variety of full-fat or prepressed materials that have oil levels below approximately 35%. For high-oil materials, it is better to go through prepressing before expanding.
