Soybean peeling machine

Home/oilseeds pretreatment plant/Soybean peeling machine
Soybean peeling machine 2018-03-07T14:27:11+00:00

Project Description

In oil milling plant, soybean peeling/hulling machine can effectively increase the oil extraction capacity and reduce residual oil in soybean meal. In general, the husk content of soybean is 5%~8%, while the oil content of the peel is less than 1%. Leaving the soy hulls in oilseed processing can waste spaces of oil press machine. In order to improve the oil production and reduce energy consumption of oil milling plant, it is necessary to remove the hulls before pressing and extracting with soybean peeling machine or soybean hulling section.

soybean peeling machine for sale

Specifications of soybean peeling machine

Model Power Capacity Weight Size
FTP500 18.5kw Hulling beans 1000kg/h 550kg 1600*800*1800mm
FTP150 11kw Hulling beans 500-700kg/h 400kg 1350*700*1800mm
FTP1000 30kw Hulling beans 2000-2500kg/h 800kg 2100*1000*2000mm

Soybean Peeling Section (Hulling System)

By convention, advanced twice de-hulling technology is adopted for oil milling process. After being cracked first time by the teeth-roller crackers, the cracked soybean passes through the first course air classifiers. The cracked soybean hull will be sucked out from soybean kernel and collected by cyclone. Then the soybean is cracked again by the teeth-roller crackers, and air classified again by second course air classifiers. Then the mixture of soybean hull and small-size kernel is screened by flat rotary sieve. Soybean hull on the screen will be sent to be milled by Mill, and then stored temporarily in Hull Bin. Twice de-hulling process can remove soybean hull over 85%, it can assure the final by-product, Soya Meal, contains high protein. According different customers’ requests in Soya Meal, e.g. some customers want Soya Meal with low protein content; add proper quantity of soybean hull into the meal to produce meal meeting various requirements of protein content of meal. The separated soybean kernel under the screen is sent to Flake Roller to be flaked.

Types of Soya Peeling/Hulling Line

Soya peeling technique generally can be divided into cold dehulling, warm dehulling and hot dehulling.

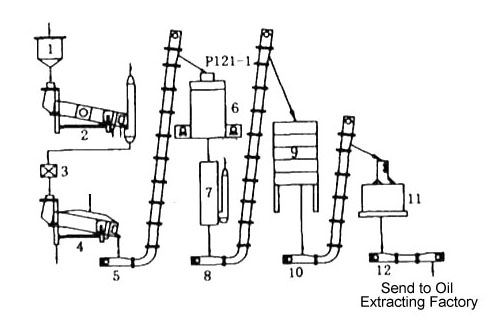

Soya Cold Dehulling / Peeling Production

1. Storage Silo   2. Cleaning Sieve   3. Magnetic Selector   4. De-stoner   5.Conveyor   6.Crusher   7. Peeling Machine   8. Conveyor   9. Conditioner   10.Conveyor   11.Flaking Machine   12.Conveyor

Soya Hot Dehulling / Peeling Production

1. Storage Silo   2. Cleaning Sieve   3. Magnetic Selector   4. De-stoner   5.Conveyor   6.Conditioner   7.Conveyor   8.Crusher   9.Striking Detacher   10.Hulling Machine   11. Conveyor   12.Flaking Machine   13.Conveyor
