Project Description

As a professional pellet machine manufacturer, AGICO can offer complete biomass pellet plant not only small scale for farm and workshop, but also large scale production for commercial pelletizing factories. The capacity of our pelletizing plant for sale can range from 200kg to 20 tons per hour. After more than 20 years of experience in biomass industry, we have built a lot of successful projects all over the world including Vietnam, UK, Serbia, Morocco, Malaysia, Italy, Israel, Ghana, Chile and Australia etc.

ring die pellet mill for complete pellet plant

Ring Die Pellet Mill for Biomass Pellet Plant

Ring die pellet mill from GEMCO for complete biomass pellet plant is one special type of biomass pelletizer machine. Contrast of small pellet mills with flat die, GEMCO ring die pellet mill is designed only for large scale wood pellet or other biomass pellet production in pellet plant. In general, ring die pellet mills have so many advantages for large scale biomass pellet production. If you want to build a pellet plant with capacity more than 1 ton/h, this type ring die pellet mill is definitely in your consideration. Through combining several ring die pellet mills, your pellet plant can reach 30 t/h capacity.

200-500kg/h Ring Die Pellet Press

BPM25 Ring Die Pellet Mill

Model BPM25
Capacity 200-250kg/h
Power 22+0.75+0.37kw
Dimension 1700*1200*1000mm
Weight 800kg

This is a small ring die type pellet machine for processing wood and biomass materials. It is designed for small scale wood pellet production and it is a good choice for small pelletizing business. After pelleting, the final pellets are featured of bright, clean, less crack, high density and quality, uniform length, etc.

500-800kg/h Ring Die Pellet Press

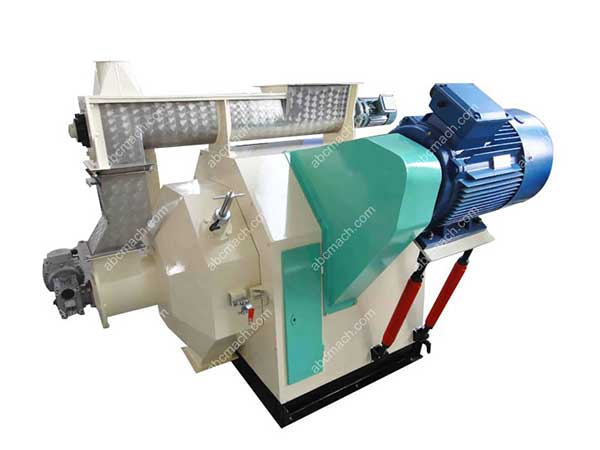

BPM35 Ring die pellet mill

Model BPM35
Capacity 500-700kg/h
Power 30*2+0.75+0.75kw
Dimension 2150*1950*1900mm
Weight 2200kg

This pellet mill is designed with double belt driven structure. It is suitable for small to medium scale pellet making plant. You can make fuel pellets from various biomass and wood materials such as saw dust, bamboo powder and straw.

1-2T/h Wood Pellet Press

BPM420 Ring die pellet mill machine

Model BPM42 BPM508
Capacity 1000-15000kg/h 1500-2000kg/h
Power 90+1.5+3kw 110+1.5+1.2kw
Dimension 1100*2700*2000 1200*2900*2000
Weight 3000kg 3700kg

It is featured of patented driving system, improved extruding strength and increased production capacity. The moisture of raw biomass material can be 12%-16%. The ring die is made of high quality stainless steel, and the lifespan increased by 50%. It is also a high efficient and energy saving mill which can save 6% of electricity cost per year. This large wood pellet press is the ideal choice for industrial pellet line with high output.

1.5-3T/h Ring Die Pellet Press

BPM510 Ring die pellet mill machine

Model BPM510
Capacity Sawdsut 15000-2000kg/h
Palm Fiber 2000-3000kg/h
Power 90kw
Dimension 1200*2900*2000
Weight 3200kg

This is our newly developed pellet mill with wide adaptability on raw materialsmoisture (13-22%). Besides, the output is largely improved. The capacity of this 90kw pellet mill can reach up to 1.5-2Tons per hour. For palm fiber pelletizing, the capacity can be 2-3Tons per hour.

Raw Materials for Complete Biomass Pellet Plant

Our high quality complete pellet plant can process various kinds of biomass materials which gives you the flexibility to choose the most economic raw material basing on the availability and price. Below are suitable raw materials for pelletizing.

raw materials for biomass pellet plant

  • Wood materials: Wood log (such as pinewood, rubber tree, eucalyptus, robinia pseudoacacia, salix), wood chips, shavings and sawdust.
  • Agricultural raw materials: Straw (such as maize straw, wheat straw, canola straw, cotton straw…), Chaff (such as rice husk, rice bran, wheat husk…), Peanut Shell, Reed, Bagasse, Pineapple Peel, soybean stem…
  • Other materials: Palm fiber, Palm Kernel Shell (PKS), Coconut Shells, Waste Paper, Moso Bamboo, Grass (such as alfalfa, The giant king grass, elephant grass) and other biomass rubbish.

How to Build Your Own Pellet Plant?

Buying a pellet mill is just the beginning of building a complete pellet plant. A typical pellet plant covers the following process: material resizing→material cleaning→drying→pelletizing→sieving & cooling→pellets packing. The photo below shows a 4 t/h wood pellet project diagram that AGICO makes for one of our clients.

Equipments for Building A Complete Pellet Plant

To build a biomass pellet plant, a pellet mill is the essential equipment that you must equipped. As to how many pieces of pellet mills you need is depending on the amount of raw material you are dealing with per hour and the estimated capacity. If you are a beginner in wood pellet business, you may start with one pellet mill to build a mini pellet plant at the beginning.

ring die pellet mill and other equipments for complete pellet plant
Regardless of big or small capacity, besides pellet mill, you need to have all or most of the following equipments:

Wood chipper: a wood chipper is to cut large size woody material, e.g. logs, branches, into smaller slice material.

Hammer mill: a hammer mill can process wood chippers, straws into smaller pieces, of which the size is less than 3mm. This size is preferred for a pellet mill to get raw material feeding in.

Drying system: Moisture of material matters a lot to pellet quality. As different raw materials have different moisture, a dryer is crucially important to pellet production process. Read this blog to learn more about this issue:Raw material moisture matters a lot to pellet production. Each material requires an unique moisture. If you want to make pellets from wood, material with moisture of around 15% is the best.

Cooling and sieving system: pellets come from pellet mill need to be cooled down to keep a better strength. The sieve will separate intact pellets from ash, which could be in recycling use.

Needless to say, you also need belt conveyors or elevators or packing machine to connect all the equipments. Chances are you may also need a debarker, magnetic separator, weighting and packing machine, etc. Do you feel that? To build a pellet plant is a little complicated than buying a small pellet mill and making pellets at home. But never mind, contact with AGICO, we will reply you with a total solution just suitable for your requirments.

The Benefits of Building A Complete Pellet Plant

According to the latest market research, the total volume of the worlds demand for pellets is around 16,000,000 tonnes for 1 year. It is predicted that by the end of 2020, this demand will increases to 46,000,000 tonnes. Which values USD 8 billion (€5.75 billion). Under the EU’s mandate, 20% of energy consumption shall come from renewable energy. Among all the demands, as a clean biofuel energy, wood pellets are seen a dramatically increasing market demand through all over the world because the technology for making wood pellets is mature and the raw material is easy to obtain. In a foreseeable future, it’s no doubt that business of making wood pellets is promising and will not out of date. Companies who has access to proper raw materials and who owns large drying capacity are already be active and taste benefits in this area, even more and more wood chips and logs are brought as raw material to make wood pellets. Chances never waits for people, so does making money. It’s your chance now, build your own pellet plant and start making money today!

Why Choose AGICO Biomass Pellet Plant?

First of all, AGICO has its own ring die factory – GEMCO, meaning the all ring dies are made by ourself. We strictly control the quality of ring die so that we can ensure the quality of pellet mill and eventually, the whole pellet plant, make it consistent and reliable. As a ring die decides the pellets quality made by a pellet mill and it is the most frequently changed wearing parts for a pellet plant, you definitely want to buy a durable and quality ring die to save money. Never buy from an unknown reseller because there will always be a huge mark-up and unpredictable quality. Below are the photos of AGICO ring die workshop which deserves your trust. By the way, AGICO ring die has the patented “step-shaped” die hole design, which triples the service life of a ring die.
AGICO has build more than 40 wood pellet plants in southeast China, sharing the NO.1 wood pellet production market. Also we have pellet plant turnkey project in every continent on earth. You are welcome to have a on-site visit!

So that if you are planning to set up a complete biomass pellet plant, AGICO would be your reliable pellet plant manufacturer with rich experience and competitive factory price. Don’t hesitate to inquiry about detailed info about our equipment and customized pelleting plant.
